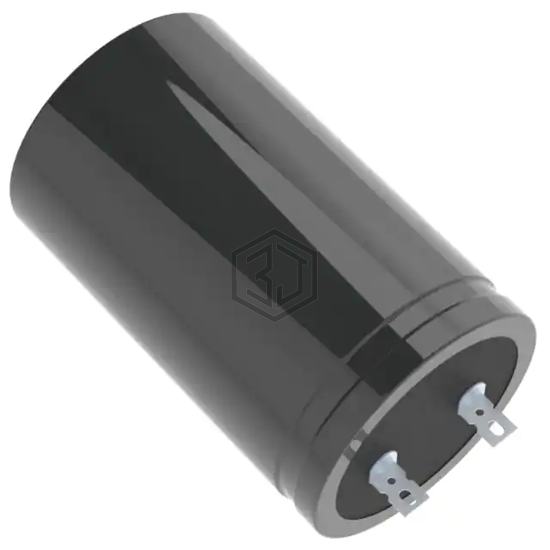

CAP ALUM 22000UF 20% 80V SOLDER
LKG1K223MKZ is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22000UF 20% 80V SOLDER. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Solder Lug.
In Stock: 7,006
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 11.6 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.984" (25.00mm) |
| Size / Dimension | 2.480" Dia (63.00mm) |
| Height - Seated (Max) | 4.055" (103.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Solder Lug |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LKG2A223MKZ | Nichicon | CAP ALUM 22000UF 20% 100V SOLDER | 87% | View |
| MAL225636223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 25V SNAP | 56% | View |
| MAL225635223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 16V SNAP | 56% | View |
| 53D223G016JP7 | Vishay Sprague | CAP ALUM 22000UF 16V AXIAL | 56% | View |
| 80D223P010MB2DE3 | Vishay Sprague | CAP ALUM 22000UF 10V SNAP | 56% | View |
| 80D223P016MC2DE3 | Vishay Sprague | CAP ALUM 22000UF 16V SNAP | 56% | View |
