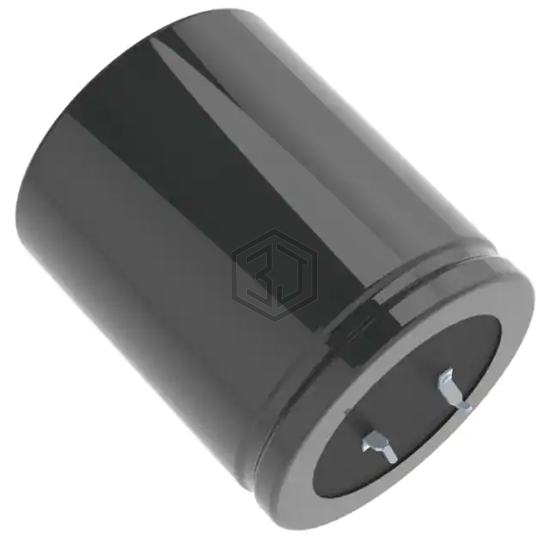

CAP ALUM 2200UF 20% 80V SNAP
LKG1K222MESCCK is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 6,030
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 3.9 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 380LQ222M100J452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 20% 100V SNAP | 84% | View |
| ESMH101VNN222MA25W | United Chemi-Con | CAP ALUM 2200UF 20% 100V SNAP | 84% | View |
| LKG1J222MESABK | Nichicon | CAP ALUM 2200UF 20% 63V SNAP | 79% | View |
| 860010781028 | Würth Elektronik | CAP ALUM 2200UF 20% 63V RADIAL | 75% | View |
| B43508E2228M82 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 250V SNAP | 64% | View |
| LGN2Z222MELB50 | Nichicon | CAP ALUM 2200UF 20% 180V SNAP | 62% | View |
Submit your RFQ for LKG1K222MESCCK and get a quote within 24 hours.
