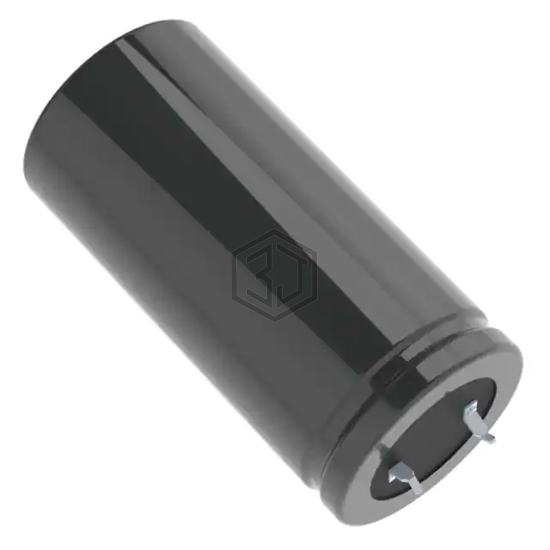

CAP ALUM 2200UF 20% 80V SNAP
LKG1K222MESBCK is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 7,153
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 4.05 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 380LX222M080K012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 20% 80V SNAP | 87% | View |
| 100USC2200MEFC25X35 | Rubycon | CAP ALUM 2200UF 20% 100V SNAP | 82% | View |
| MAL215662222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 80V SNAP | 81% | View |
| EGPD500ELL222ML35H | United Chemi-Con | CAP ALUM 2200UF 20% 50V RADIAL | 80% | View |
| 63VXG2200MEFC25X30 | Rubycon | CAP ALUM 2200UF 20% 63V SNAP | 63% | View |
| 50YK2200M16X35.5 | Rubycon | CAP ALUM 2200UF 20% 50V RADIAL | 59% | View |
Submit your RFQ for LKG1K222MESBCK and get a quote within 24 hours.
