CAP ALUM 3300UF 20% 63V SNAP

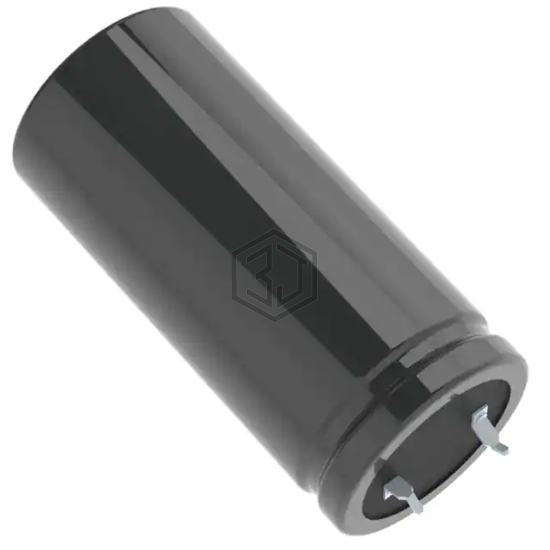

LKG1J332MESZAK is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3300UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 1,597
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 2.8 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PL1H332MND2235 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 83% | View |
| MAL215667332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 40V SNAP | 79% | View |
| MAL215627332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 40V SNAP | 79% | View |
| LGY1H332MELZ35 | Nichicon | CAP ALUM 3300UF 20% 50V SNAP | 76% | View |
| THA332M030AA0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 3300UF 20% 30V FLATPACK | 59% | View |
| 16YXF3300MEFC16X25 | Rubycon | CAP ALUM 3300UF 20% 16V RADIAL | 51% | View |
Submit your RFQ for LKG1J332MESZAK and get a quote within 24 hours.
