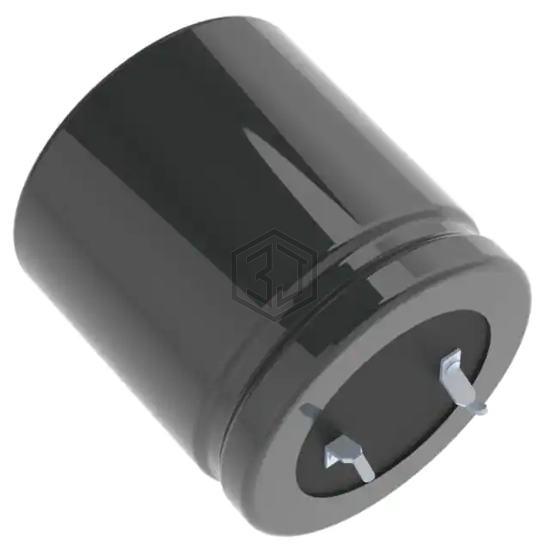

CAP ALUM 1200UF 20% 63V SNAP
LKG1J122MESABK is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1200UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 9,069
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 1.9 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKY-630ELL122MMN3S | United Chemi-Con | CAP ALUM 1200UF 20% 63V RADIAL | 99% | View |
| LKG1K122MESYBK | Nichicon | CAP ALUM 1200UF 20% 80V SNAP | 82% | View |
| 80MXC1200MEFC22X30 | Rubycon | CAP ALUM 1200UF 20% 80V SNAP | 81% | View |
| EKMH800VSN122MQ25U | United Chemi-Con | CAP ALUM 1200UF 20% 80V SNAP | 80% | View |
| 860040580016 | Würth Elektronik | CAP ALUM 1200UF 20% 35V RADIAL | 70% | View |
| EKZE160ELL122MJ25S | United Chemi-Con | CAP ALUM 1200UF 20% 16V RADIAL | 59% | View |
