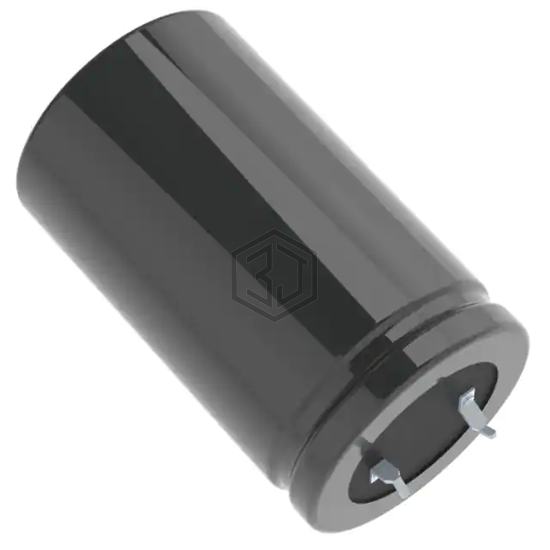

CAP ALUM 8200UF 20% 50V SNAP
LKG1H822MESBAK is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 8200UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 6,678
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 3.55 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGY1H822MELB40 | Nichicon | CAP ALUM 8200UF 20% 50V SNAP | 92% | View |
| EKZN100ELL822MLN3S | United Chemi-Con | CAP ALUM 8200UF 20% 10V RADIAL | 71% | View |
| EEU-FC1A822L | Panasonic Electronic Components | CAP ALUM 8200UF 20% 10V RADIAL | 62% | View |
| 80USG8200MEFCSN35X45 | Rubycon | CAP ALUM 8200UF 20% 80V SNAP | 61% | View |
| UPA0J822MHD6TN | Nichicon | CAP ALUM 8200UF 20% 6.3V RADIAL | 57% | View |
| VHT8200M25 | NTE Electronics, Inc | CAP ALUM 8200UF 20% 25V RADIAL | 56% | View |
Submit your RFQ for LKG1H822MESBAK and get a quote within 24 hours.
