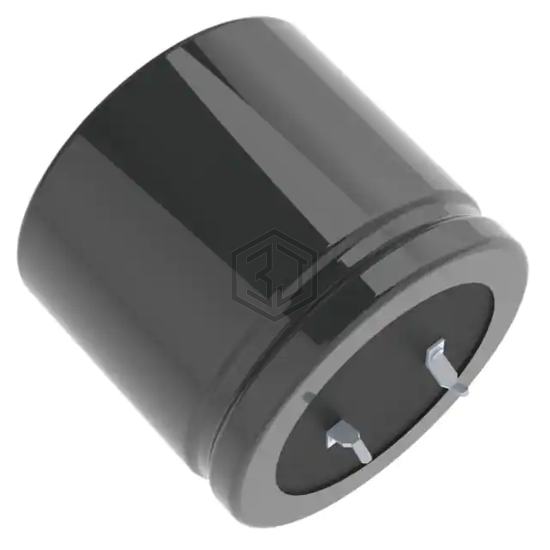

CAP ALUM 2700UF 20% 50V SNAP
LKG1H272MESBBK is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2700UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 6,346
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 2.6 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50YXH2700MEFC18X40 | Rubycon | CAP ALUM 2700UF 20% 50V RADIAL | 99% | View |
| EKYC500ELL272MM30S | United Chemi-Con | CAP ALUM 2700UF 20% 50V RADIAL | 98% | View |
| 50USC2700MEFCSN20X30 | Rubycon | CAP ALUM 2700UF 20% 50V SNAP | 95% | View |
| MAL215628272E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2700UF 20% 63V SNAP | 86% | View |
| EKMH500VNN272MQ25U | United Chemi-Con | CAP ALUM 2700UF 20% 50V SNAP | 86% | View |
| LKS1J272MESZ | Nichicon | CAP ALUM 2700UF 20% 63V SNAP | 86% | View |
Submit your RFQ for LKG1H272MESBBK and get a quote within 24 hours.
