CAP ALUM 2700UF 20% 50V SNAP

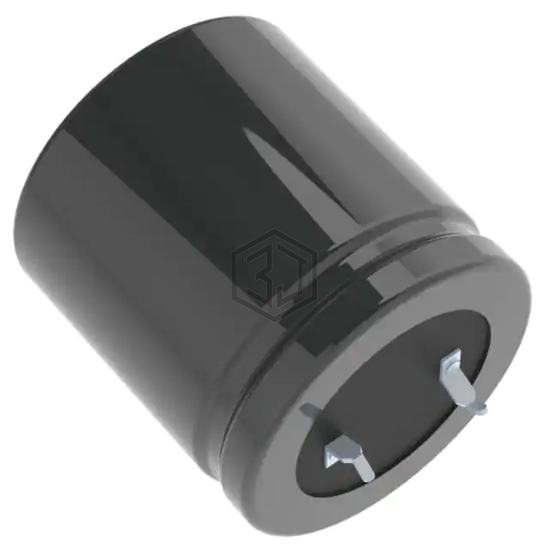

LKG1H272MESAAK is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2700UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 9,999
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 1.95 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LX272M063J032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 2700UF 20% 63V SNAP | 87% | View |
| LKG1V272MESCCK | Nichicon | CAP ALUM 2700UF 20% 35V SNAP | 80% | View |
| MAL214690273E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2700UF 20% 35V RADIAL | 77% | View |
| MAL214655272E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2700UF 20% 16V RADIAL | 56% | View |
| 860080480025 | Würth Elektronik | CAP ALUM 2700UF 20% 25V RADIAL | 56% | View |
| LKG2A272MESBAK | Nichicon | CAP ALUM 2700UF 20% 100V SNAP | 52% | View |
