CAP ALUM 22000UF 20% 50V SOLDER

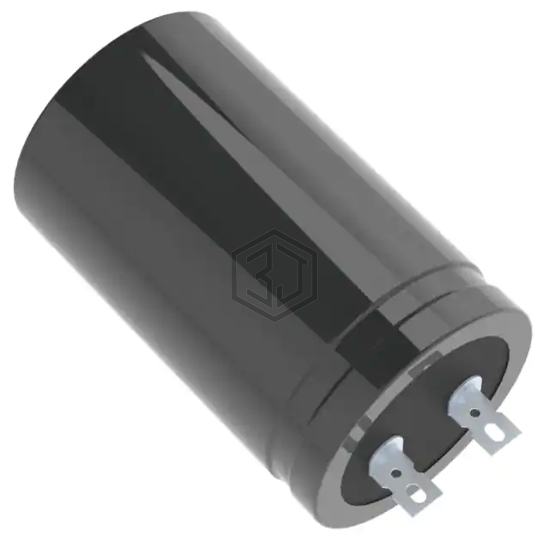

LKG1H223MKZ is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22000UF 20% 50V SOLDER. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - Solder Lug.
In Stock: 34
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 8.3 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.709" (18.00mm) |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 3.268" (83.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Solder Lug |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 53D223F050MD6 | Vishay Sprague | CAP ALUM 22000UF 50V AXIAL | 100% | View |
| ALC80F223EH063 | KEMET | CAP ALUM 22000UF 20% 63V SNAP | 84% | View |
| ESMH800VQT223MB80U | United Chemi-Con | CAP ALUM 22000UF 20% 80V RAD | 70% | View |
| 80D223P025ME2DE3 | Vishay Sprague | CAP ALUM 22000UF 25V SNAP | 68% | View |
| B41231B4229M000 | EPCOS - TDK Electronics | CAP ALUM 22000UF 20% 16V SNAP | 58% | View |
| ESMH250VSN223MQ50S | United Chemi-Con | CAP ALUM 22000UF 20% 25V SNAP | 55% | View |
Submit your RFQ for LKG1H223MKZ and get a quote within 24 hours.
