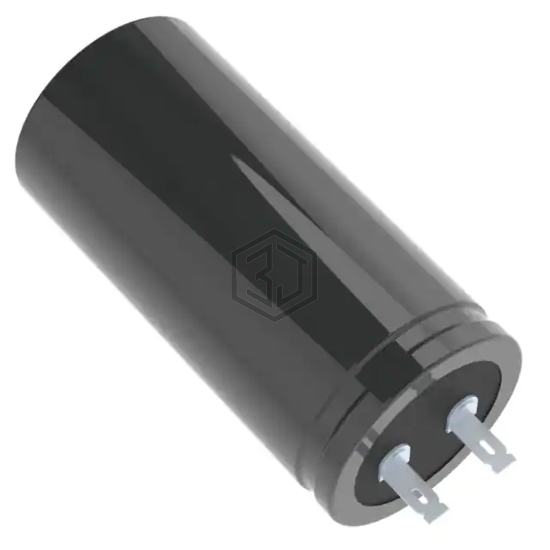

CAP ALUM 15000UF 20% 50V SOLDER
LKG1H153MKN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 15000UF 20% 50V SOLDER. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - Solder Lug.
In Stock: 8,758
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 6.1 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.551" (14.00mm) |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 3.268" (83.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Solder Lug |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ALT22A153DE063 | KEMET | CAP ALUM 15000UF 20% 63V SNAP | 85% | View |
| 383LX153M080B062VS | Cornell Dubilier Electronics (CDE) | CAP ALUM 15000UF 20% 80V SNAP | 78% | View |
| 35USC15000MEFCSN30X35 | Rubycon | CAP ALUM 15000UF 20% 35V SNAP | 78% | View |
| 35USC15000MEFC30X35 | Rubycon | CAP ALUM 15000UF 20% 35V SNAP | 78% | View |
| LGU1V153MELC | Nichicon | CAP ALUM 15000UF 20% 35V SNAP | 69% | View |
| EKMH350VNN153MA35W | United Chemi-Con | CAP ALUM 15000UF 20% 35V SNAP | 69% | View |
Submit your RFQ for LKG1H153MKN and get a quote within 24 hours.
