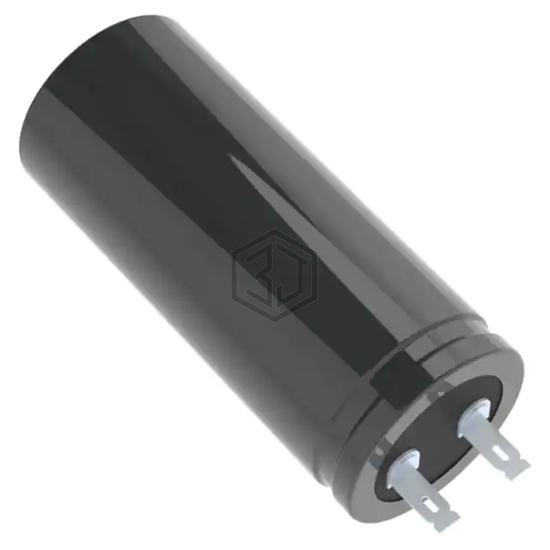

CAP ALUM 10000UF 20% 50V SOLDER
LKG1H103MKN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10000UF 20% 50V SOLDER. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - Solder Lug.
In Stock: 4,404
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 4.6 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.551" (14.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 3.268" (83.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Solder Lug |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 53D103G050JT7 | Vishay Sprague | CAP ALUM 10000UF 50V AXIAL | 100% | View |
| 380LX103M050J052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 50V SNAP | 97% | View |
| LKS1J103MESC | Nichicon | CAP ALUM 10000UF 20% 63V SNAP | 89% | View |
| MAL205677103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 40V SNAP | 88% | View |
| MAL205158103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 63V RADIAL | 85% | View |
| 380LX103M035A012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 35V SNAP | 84% | View |
