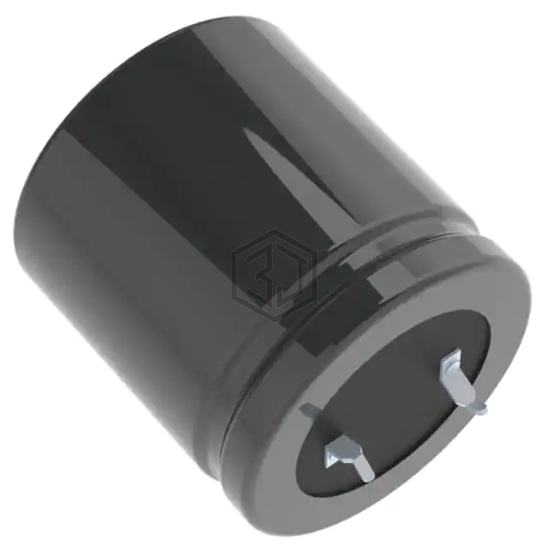

CAP ALUM 6800UF 20% 25V SNAP
LKG1E682MESAAK is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6800UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 7,770
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 2.15 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH250VSN682MP30U | United Chemi-Con | CAP ALUM 6800UF 20% 25V SNAP | 95% | View |
| MAL215056682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 25V RADIAL | 93% | View |
| LLS1V682MELB | Nichicon | CAP ALUM 6800UF 20% 35V SNAP | 74% | View |
| 6.3ZL6800MEFCGC16X25 | Rubycon | CAP ALUM 6800UF 20% 6.3V RADIAL | 68% | View |
| 50USC6800MEFCSN22X50 | Rubycon | CAP ALUM 6800UF 20% 50V SNAP | 56% | View |
| LKG1J682MESCAK | Nichicon | CAP ALUM 6800UF 20% 63V SNAP | 53% | View |
Submit your RFQ for LKG1E682MESAAK and get a quote within 24 hours.
