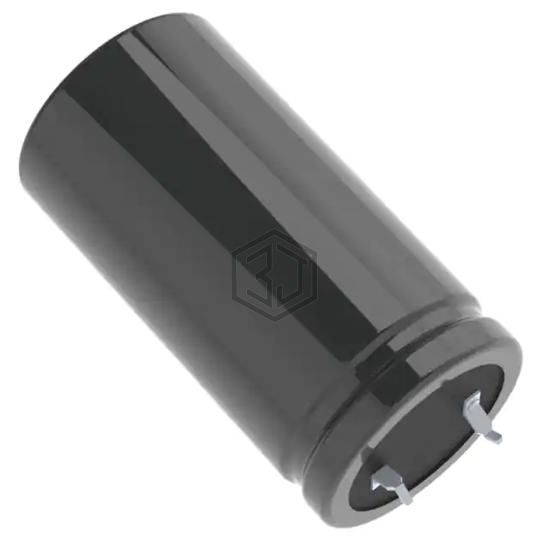

CAP ALUM 5600UF 20% 25V SNAP
LKG1E562MESZBK is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 5600UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 9,380
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 2.5 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LKG1E562MESABK | Nichicon | CAP ALUM 5600UF 20% 25V SNAP | 99% | View |
| ELXZ250ELL562MM40S | United Chemi-Con | CAP ALUM 5600UF 20% 25V RADIAL | 92% | View |
| EKYB250ELL562MLP1S | United Chemi-Con | CAP ALUM 5600UF 20% 25V RADIAL | 89% | View |
| LKS1V562MESY | Nichicon | CAP ALUM 5600UF 20% 35V SNAP | 83% | View |
| 35USG5600MEFCSN25X25 | Rubycon | CAP ALUM 5600UF 20% 35V SNAP | 83% | View |
| THAS562M035AD1C | Cornell Dubilier Electronics (CDE) | CAP ALUM 5600UF 20% 35V FLATPACK | 74% | View |
Submit your RFQ for LKG1E562MESZBK and get a quote within 24 hours.
