CAP ALUM 6800UF 20% 16V SNAP

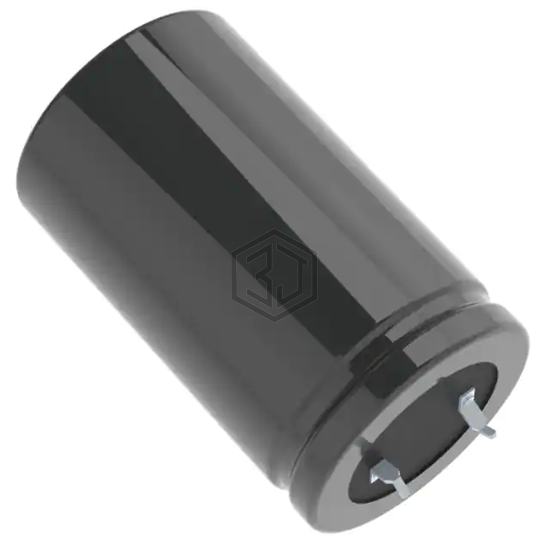

LKG1C682MESBCK is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6800UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 4,751
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 3.2 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LX682M016H012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 16V SNAP | 88% | View |
| B41231B5688M000 | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 25V SNAP | 81% | View |
| EKMH500VSN682MA30S | United Chemi-Con | CAP ALUM 6800UF 20% 50V SNAP | 71% | View |
| 688LBA035M2CD | Cornell Dubilier / Illinois Capacitor | CAP ALUM 6800UF 20% 35V SNAP | 69% | View |
| B41252A5688M | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 25V SNAP | 69% | View |
| SLP682M035E1P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 35V SNAP | 67% | View |
Submit your RFQ for LKG1C682MESBCK and get a quote within 24 hours.
