CAP ALUM 15000UF 20% 16V SNAP

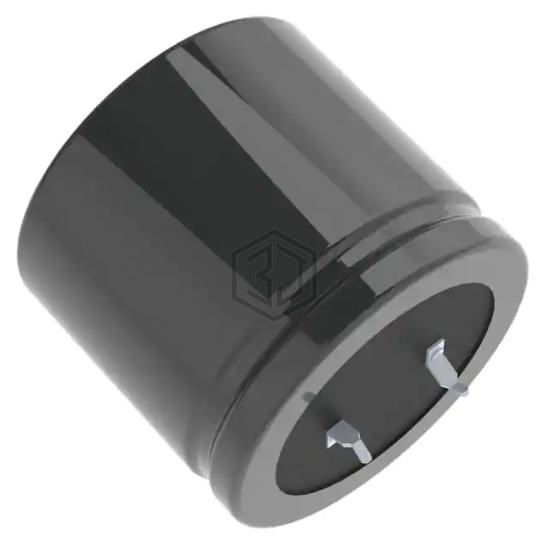

LKG1C153MESBAK is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 15000UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 1,922
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 2.5 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVY1C153MHD | Nichicon | CAP ALUM 15000UF 20% 16V RADIAL | 96% | View |
| 25MXC15000MEFCSN25X45 | Rubycon | CAP ALUM 15000UF 20% 25V SNAP | 71% | View |
| 80D153P010JD2DE3 | Vishay Sprague | CAP ALUM 15000UF 10V SNAP | 70% | View |
| 6.3YXS15000MEFC18X31.5 | Rubycon | CAP ALUM 15000UF 20% 6.3V RADIAL | 66% | View |
| MAL214833153E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 20% 6.3V RADIAL | 65% | View |
| LGU1H153MELC | Nichicon | CAP ALUM 15000UF 20% 50V SNAP | 50% | View |
