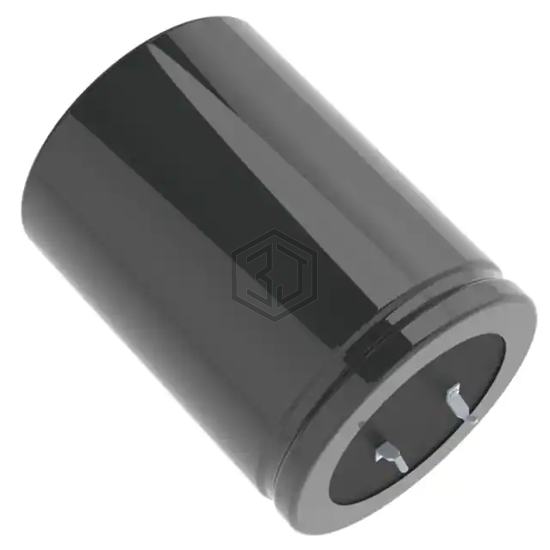

CAP ALUM 270UF 20% 450V SNAP
LGZ2W271MELC45 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 270UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 384
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 20000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.19 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.7017 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGUW6271MELA | Nichicon | CAP ALUM 270UF 20% 420V SNAP | 97% | View |
| B43508C5277M62 | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 450V SNAP | 97% | View |
| ETXH401VSN271MA30S | United Chemi-Con | CAP ALUM 270UF 20% 400V SNAP | 94% | View |
| LAKW6271MELC40 | Nichicon | CAP ALUM 270UF 20% 420V SNAP | 89% | View |
| 450VXS270MEFC30X35 | Rubycon | CAP ALUM 270UF 20% 450V SNAP | 86% | View |
| 381LR271M400J452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 270UF 20% 400V SNAP | 83% | View |
Submit your RFQ for LGZ2W271MELC45 and get a quote within 24 hours.
