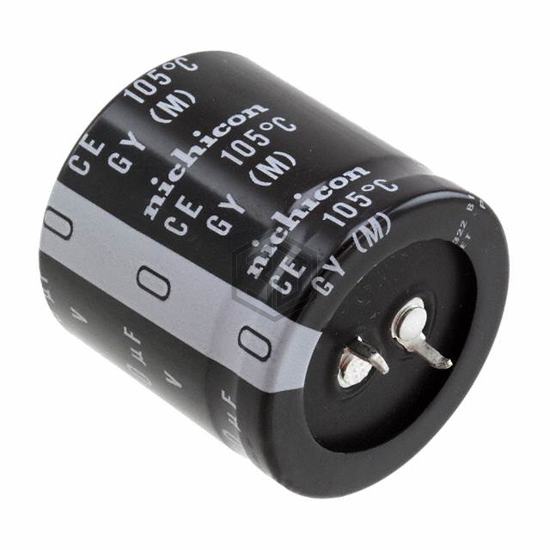

CAP ALUM 56UF 20% 450V SNAP
LGY2W560MELZ is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 56UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 5,943
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 470 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
LGY2W560MELZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKXJ451ELL560MLN3S | United Chemi-Con | CAP ALUM 56UF 20% 450V RADIAL | 93% | View |
| UCS2G560MND9 | Nichicon | CAP ALUM 56UF 20% 400V RADIAL | 92% | View |
| UCY2G560MHD3TN | Nichicon | CAP ALUM 56UF 20% 400V RADIAL | 87% | View |
| 250BXC56MEFCGC18X16 | Rubycon | CAP ALUM 56UF 20% 250V RADIAL | 69% | View |
| PF2C560MSD1020 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 56% | View |
| 601D586F010FE1 | Vishay Sprague | CAP ALUM 58UF 10V AXIAL | 53% | View |
Submit your RFQ for LGY2W560MELZ and get a quote within 24 hours.
