CAP ALUM 180UF 20% 450V SNAP

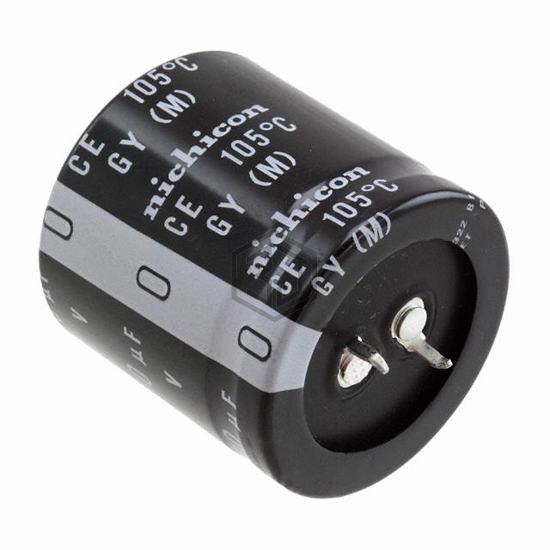

LGY2W181MELC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 180UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 9,609
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 870 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.0005 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
LGY2W181MELC is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LKX2W181MESB30 | Nichicon | CAP ALUM 180UF 20% 450V SNAP | 95% | View |
| 381LX181M450K032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 180UF 20% 450V SNAP | 95% | View |
| B43508B9187M80 | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 400V SNAP | 95% | View |
| LGG2G181MELA25 | Nichicon | CAP ALUM 180UF 20% 400V SNAP | 91% | View |
| LGN2G181MELZ35 | Nichicon | CAP ALUM 180UF 20% 400V SNAP | 87% | View |
| 400VXH180MEFC25X30 | Rubycon | CAP ALUM 180UF 20% 400V SNAP | 77% | View |
