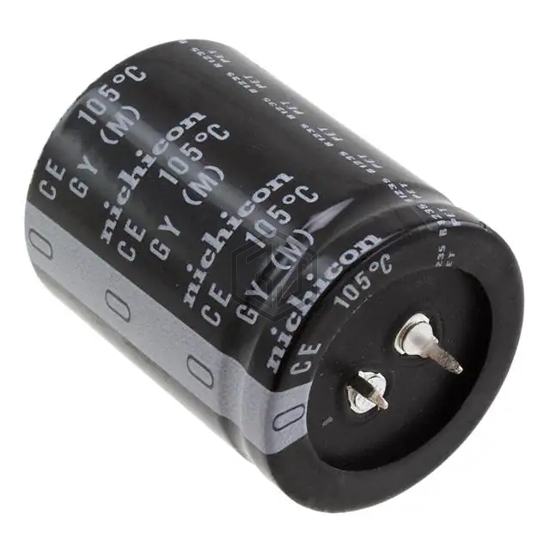

CAP ALUM 3900UF 20% 100V SNAP
LGY2A392MELC45 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3900UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 6,467
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.335 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGY1K392MELB40 | Nichicon | CAP ALUM 3900UF 20% 80V SNAP | 88% | View |
| EKMH101VSN392MA45T | United Chemi-Con | CAP ALUM 3900UF 20% 100V SNAP | 88% | View |
| EEU-FR1C392SB | Panasonic Electronic Components | CAP ALUM 3900UF 20% 16V RADIAL | 76% | View |
| 10ZL3900MEFC12.5X30 | Rubycon | CAP ALUM 3900UF 20% 10V RADIAL | 73% | View |
| 381LX392M050J032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 3900UF 20% 50V SNAP | 65% | View |
| EEU-FC1A392 | Panasonic Electronic Components | CAP ALUM 3900UF 20% 10V RADIAL | 59% | View |
Submit your RFQ for LGY2A392MELC45 and get a quote within 24 hours.
