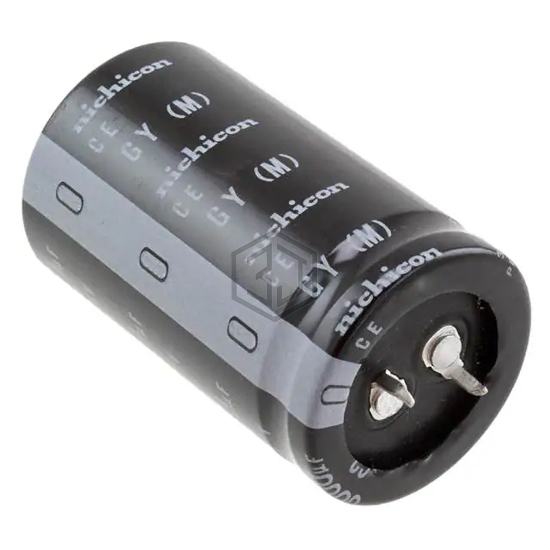

CAP ALUM 3300UF 20% 100V SNAP
LGY2A332MELB50 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3300UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 3,650
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.105 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 80MXC3300MEFCSN25X40 | Rubycon | CAP ALUM 3300UF 20% 80V SNAP | 92% | View |
| 63MXC3300MEFC22X45 | Rubycon | CAP ALUM 3300UF 20% 63V SNAP | 79% | View |
| MAL205848332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 63V SNAP | 77% | View |
| 25ZLH3300MEFC16X25 | Rubycon | CAP ALUM 3300UF 20% 25V RADIAL | 74% | View |
| 35YXH3300MEFCGC16X40 | Rubycon | CAP ALUM 3300UF 20% 35V RADIAL | 71% | View |
| UBT1C332MHD8 | Nichicon | CAP ALUM 3300UF 20% 16V RADIAL | 66% | View |
Submit your RFQ for LGY2A332MELB50 and get a quote within 24 hours.
