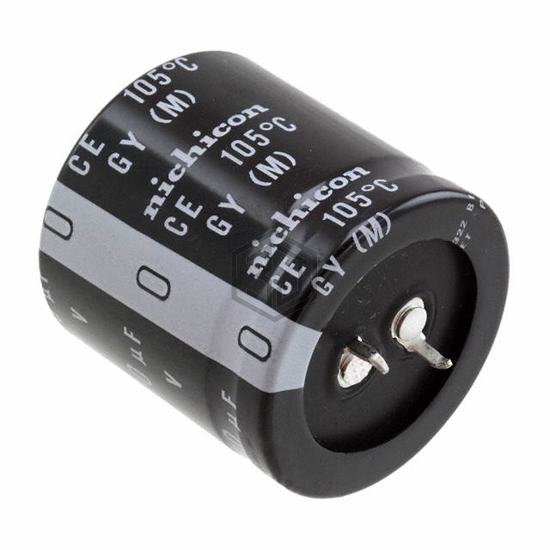

CAP ALUM 2700UF 20% 100V SNAP
LGY2A272MELC35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2700UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 5,139
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.76 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 80MXG2700MEFCSN22X40 | Rubycon | CAP ALUM 2700UF 20% 80V SNAP | 93% | View |
| 100MXC2700MEFC30X40 | Rubycon | CAP ALUM 2700UF 20% 100V SNAP | 91% | View |
| EKZE160ELL272MK30S | United Chemi-Con | CAP ALUM 2700UF 20% 16V RADIAL | 74% | View |
| EEU-FC1V272L | Panasonic Electronic Components | CAP ALUM 2700UF 20% 35V RADIAL | 73% | View |
| 16YXG2700MEFCG412.5X30 | Rubycon | CAP ALUM 2700UF 20% 16V RADIAL | 72% | View |
| EKMH630VSN272MR25U | United Chemi-Con | CAP ALUM 2700UF 20% 63V SNAP | 72% | View |
Submit your RFQ for LGY2A272MELC35 and get a quote within 24 hours.
