CAP ALUM 6800UF 20% 35V SNAP

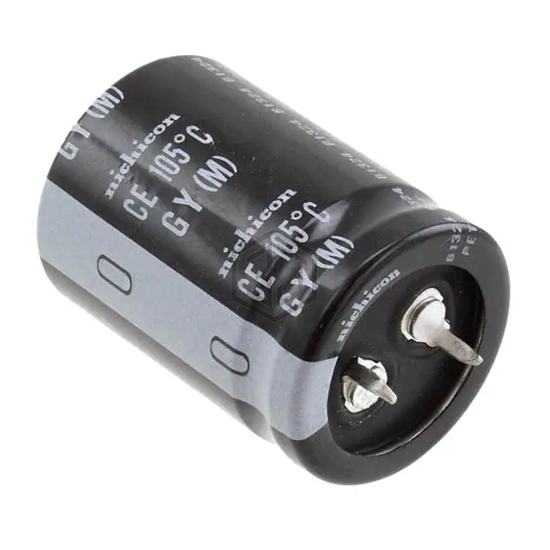

LGY1V682MELA35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6800UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 7,450
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.53 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVY1H682MRD | Nichicon | CAP ALUM 6800UF 20% 50V RADIAL | 83% | View |
| MAL212615682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 16V AXIAL | 74% | View |
| EKMH500VNN682MQ50U | United Chemi-Con | CAP ALUM 6800UF 20% 50V SNAP | 71% | View |
| 381LX682M016K202 | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 16V SNAP | 70% | View |
| 16MXG6800MEFCSN20X25 | Rubycon | CAP ALUM 6800UF 20% 16V SNAP | 69% | View |
| MAL211844682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 10V T/H | 64% | View |
Submit your RFQ for LGY1V682MELA35 and get a quote within 24 hours.
