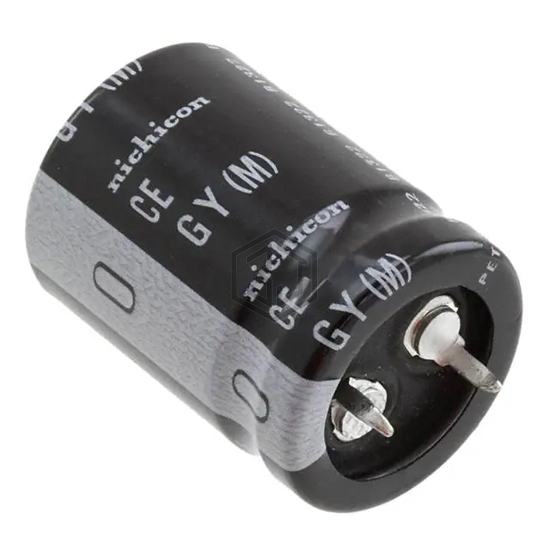

CAP ALUM 3900UF 20% 35V SNAP
LGY1V392MELZ30 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3900UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 6,338
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.84 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LP392M050C7P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 3900UF 20% 50V SNAP | 80% | View |
| EEU-FC0J392B | Panasonic Electronic Components | CAP ALUM 3900UF 20% 6.3V RADIAL | 77% | View |
| EEU-TP1E392S | Panasonic Electronic Components | CAP ALUM 3900UF 20% 25V RADIAL | 73% | View |
| LGU1H392MELA | Nichicon | CAP ALUM 3900UF 20% 50V SNAP | 72% | View |
| ELXZ160ELL392MM20S | United Chemi-Con | CAP ALUM 3900UF 20% 16V RADIAL | 68% | View |
| B41888E4398M | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 16V RADIAL | 56% | View |
Submit your RFQ for LGY1V392MELZ30 and get a quote within 24 hours.
