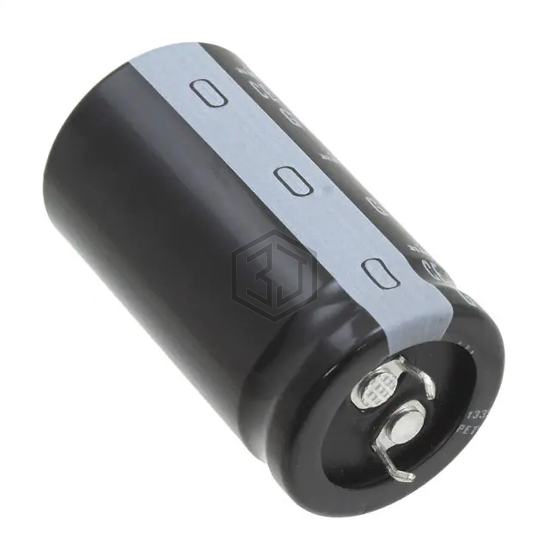

CAP ALUM 10000UF 20% 35V SNAP
LGY1V103MELA45 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10000UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 1,766
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.599 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 6.3YXJ10000MGC16X25 | Rubycon | CAP ALUM 10000UF 20% 6.3V RADIAL | 74% | View |
| 6.3ZLQ10000MEFC16X20 | Rubycon | CAP ALUM 10000UF 20% 6.3V RADIAL | 70% | View |
| MAL205876103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 25V SNAP | 69% | View |
| EKYA100ELL103MLN3S | United Chemi-Con | CAP ALUM 10000UF 20% 10V RADIAL | 69% | View |
| EKMH500VNN103MR50S | United Chemi-Con | CAP ALUM 10000UF 20% 50V SNAP | 66% | View |
| 10YXG10000MEFC18X35.5 | Rubycon | CAP ALUM 10000UF 20% 10V RADIAL | 64% | View |
Submit your RFQ for LGY1V103MELA45 and get a quote within 24 hours.
