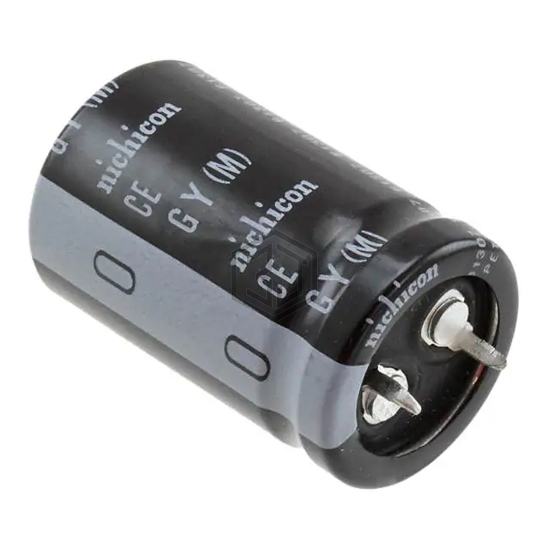

CAP ALUM 1500UF 20% 80V SNAP
LGY1K152MELZ35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 7,380
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.84 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214838152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 63V RADIAL | 86% | View |
| ELXV500ELL152ML40S | United Chemi-Con | CAP ALUM 1500UF 20% 50V RADIAL | 77% | View |
| 860040378013 | Würth Elektronik | CAP ALUM 1500UF 20% 16V RADIAL | 74% | View |
| 16YXH1500MEFC16X16 | Rubycon | CAP ALUM 1500UF 20% 16V RADIAL | 70% | View |
| EKZM500ELL152MM25S | United Chemi-Con | CAP ALUM 1500UF 20% 50V RADIAL | 67% | View |
| 158CKE035MTJD | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1500UF 20% 35V RADIAL | 67% | View |
Submit your RFQ for LGY1K152MELZ35 and get a quote within 24 hours.
