CAP ALUM 1500UF 20% 80V SNAP

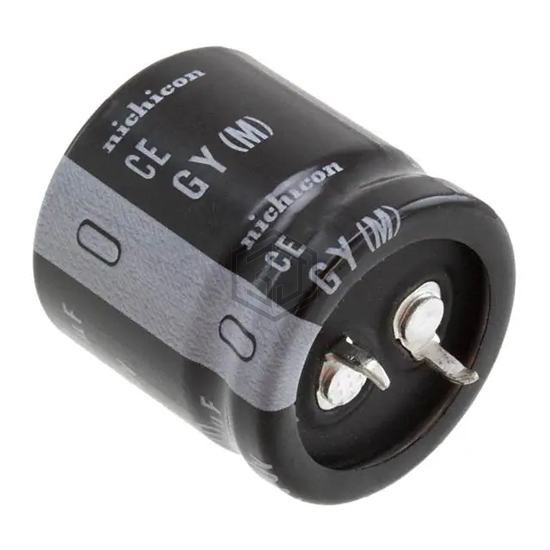

LGY1K152MELA25 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 3,428
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.84 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH800VSN152MA20S | United Chemi-Con | CAP ALUM 1500UF 20% 80V SNAP | 100% | View |
| 80ZLH1500MEFCGC18X40 | Rubycon | CAP ALUM 1500UF 20% 80V RADIAL | 91% | View |
| LGU1J152MELZ | Nichicon | CAP ALUM 1500UF 20% 63V SNAP | 89% | View |
| 10YXS1500MEFC8X20 | Rubycon | CAP ALUM 1500UF 20% 10V RADIAL | 65% | View |
| ELXZ160ELL152MK20S | United Chemi-Con | CAP ALUM 1500UF 20% 16V RADIAL | 65% | View |
| B41888C6158M | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 50V RADIAL | 65% | View |
