CAP ALUM 1000UF 20% 80V SNAP

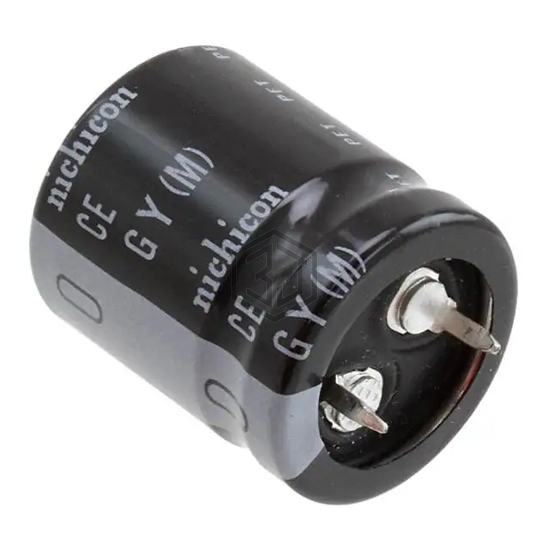

LGY1K102MELZ25 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 9,417
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.495 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXV500ELL102ML30S | United Chemi-Con | CAP ALUM 1000UF 20% 50V RADIAL | 77% | View |
| EKMG500ETE102MK25S | United Chemi-Con | CAP ALUM 1000UF 20% 50V RADIAL | 77% | View |
| MAL215060102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 35V RADIAL | 71% | View |
| 10ZLJ1000MT78X20 | Rubycon | CAP ALUM 1000UF 20% 10V RADIAL | 70% | View |
| EEU-FC1V102 | Panasonic Electronic Components | CAP ALUM 1000UF 20% 35V RADIAL | 70% | View |
| 108RZM050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1000UF 20% 50V RADIAL | 70% | View |
Submit your RFQ for LGY1K102MELZ25 and get a quote within 24 hours.
