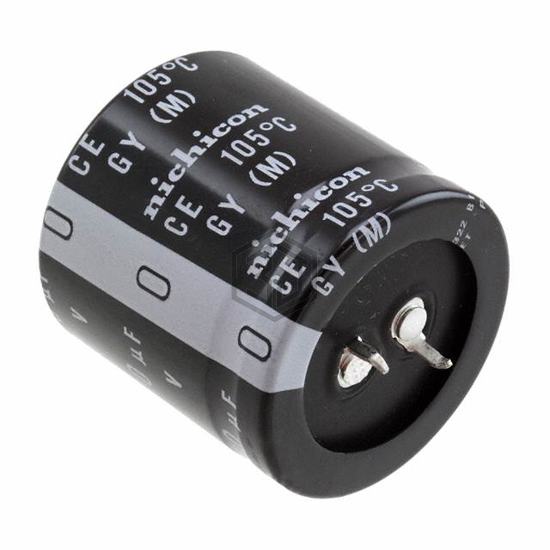

CAP ALUM 5600UF 20% 63V SNAP
LGY1J562MELC35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 5600UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 9,567
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.22 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 63MXG5600MEFCSN35X25 | Rubycon | CAP ALUM 5600UF 20% 63V SNAP | 93% | View |
| EKMH500VSN562MQ40T | United Chemi-Con | CAP ALUM 5600UF 20% 50V SNAP | 90% | View |
| LP562M050H5P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 5600UF 20% 50V SNAP | 88% | View |
| EKZE6R3ELL562ML20S | United Chemi-Con | CAP ALUM 5600UF 20% 6.3V RADIAL | 77% | View |
| EEU-FS0J562B | Panasonic Electronic Components | CAP ALUM 5600UF 20% 6.3V RADIAL | 77% | View |
| LGY1V562MELB25 | Nichicon | CAP ALUM 5600UF 20% 35V SNAP | 66% | View |
Submit your RFQ for LGY1J562MELC35 and get a quote within 24 hours.
