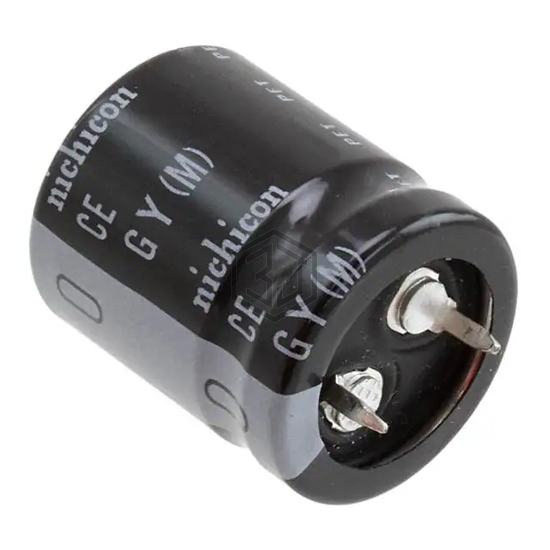

CAP ALUM 1200UF 20% 63V SNAP
LGY1J122MELZ25 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1200UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 3,813
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.495 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41505A128M2 | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 80V SNAP | 85% | View |
| ELXV350ELL122ML25S | United Chemi-Con | CAP ALUM 1200UF 20% 35V RADIAL | 73% | View |
| EEU-FC1J122L | Panasonic Electronic Components | CAP ALUM 1200UF 20% 63V RADIAL | 72% | View |
| MAL214650122E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 35V RADIAL | 68% | View |
| MAL213635122E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 16V RADIAL | 56% | View |
| 757D128M035EK4O | Vishay Sprague | CAP ALUM 1200UF 20% 35V RADIAL | 55% | View |
