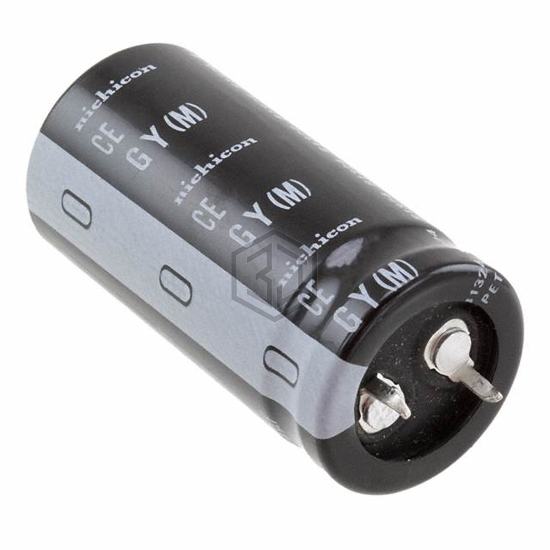

CAP ALUM 4700UF 20% 50V SNAP
LGY1H472MELZ45 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4700UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 2,554
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.415 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LX472M050J022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 4700UF 20% 50V SNAP | 100% | View |
| ELXG500VSN472MA30S | United Chemi-Con | CAP ALUM 4700UF 20% 50V SNAP | 99% | View |
| 50MXC4700MEFCSN25X35 | Rubycon | CAP ALUM 4700UF 20% 50V SNAP | 93% | View |
| 478LMB050M2BG | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4700UF 20% 50V SNAP | 89% | View |
| UPA1A472MHD | Nichicon | CAP ALUM 4700UF 20% 10V RADIAL | 74% | View |
| MAL224696475E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 25V RADIAL | 72% | View |
