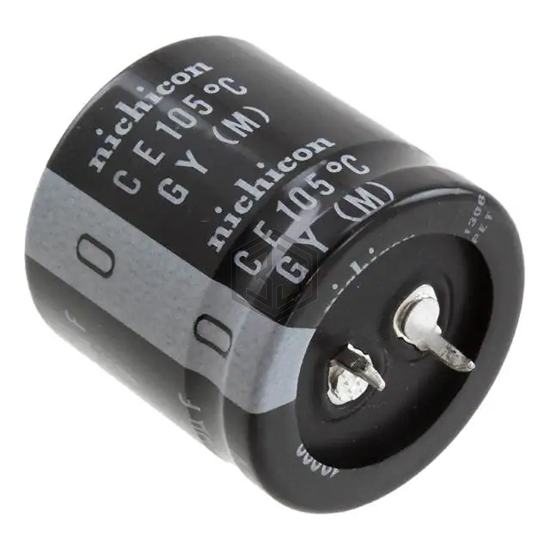

CAP ALUM 4700UF 20% 50V SNAP
LGY1H472MELB30 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4700UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 3,644
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.415 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL225631472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 50V SNAP | 99% | View |
| ELXG500VNN472MA30W | United Chemi-Con | CAP ALUM 4700UF 20% 50V SNAP | 99% | View |
| EKMH500VNN472MR30W | United Chemi-Con | CAP ALUM 4700UF 20% 50V SNAP | 98% | View |
| 35MXC4700MEFC22X30 | Rubycon | CAP ALUM 4700UF 20% 35V SNAP | 87% | View |
| MAL215060472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 35V RADIAL | 80% | View |
| LGY1K472MELC35 | Nichicon | CAP ALUM 4700UF 20% 80V SNAP | 70% | View |
Submit your RFQ for LGY1H472MELB30 and get a quote within 24 hours.
