CAP ALUM 8200UF 20% 25V SNAP

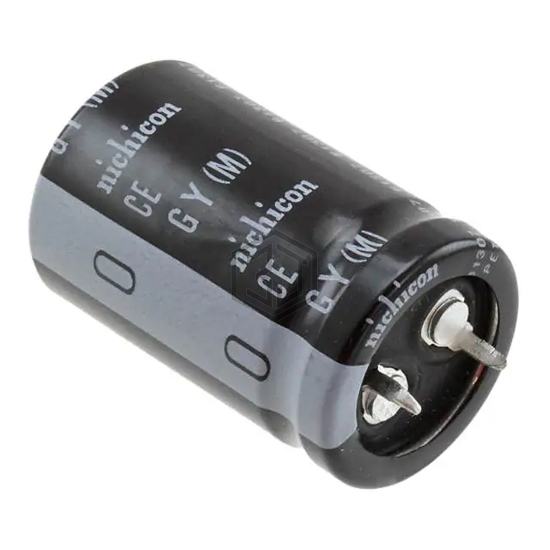

LGY1E822MELZ35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 8200UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 9,686
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.415 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215866822E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 8200UF 20% 25V SNAP | 81% | View |
| UPA0J822MHD | Nichicon | CAP ALUM 8200UF 20% 6.3V RADIAL | 73% | View |
| MAL215815822E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 8200UF 20% 16V SNAP | 69% | View |
| 63MXC8200MEFCSN35X45 | Rubycon | CAP ALUM 8200UF 20% 63V SNAP | 56% | View |
| 50VXG8200MEFCSN30X50 | Rubycon | CAP ALUM 8200UF 20% 50V SNAP | 53% | View |
| 50MXC8200MEFC35X30 | Rubycon | CAP ALUM 8200UF 20% 50V SNAP | 53% | View |
