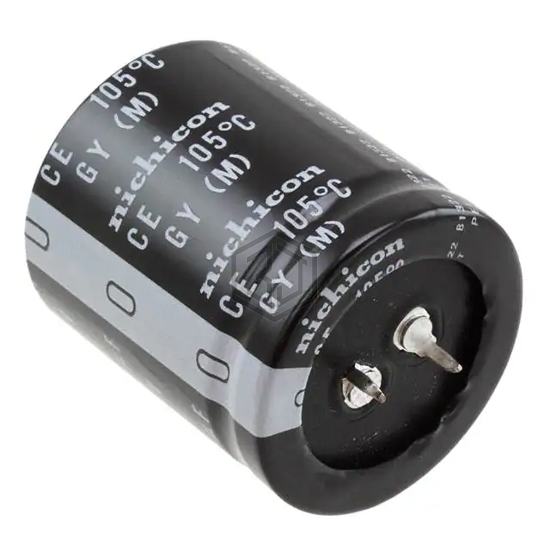

CAP ALUM 39000UF 20% 16V SNAP
LGY1C393MELC40 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 39000UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 148
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 39000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.945 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
Submit your RFQ for LGY1C393MELC40 and get a quote within 24 hours.
