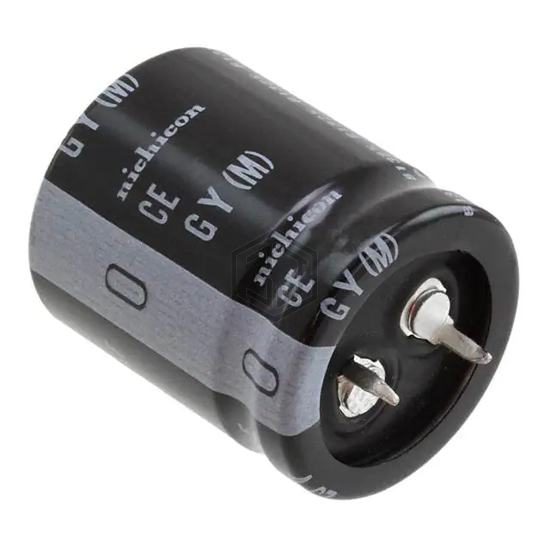

CAP ALUM 12000UF 20% 16V SNAP
LGY1C123MELA30 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 12000UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 7,212
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 12000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.76 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LQ123M016H022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 12000UF 20% 16V SNAP | 91% | View |
| MAL215865123E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 12000UF 20% 16V SNAP | 84% | View |
| 10MXG12000MEFCSN22X30 | Rubycon | CAP ALUM 12000UF 20% 10V SNAP | 79% | View |
| 10MXC12000MEFC25X25 | Rubycon | CAP ALUM 12000UF 20% 10V SNAP | 76% | View |
| EKZN160ELL123MM40S | United Chemi-Con | CAP ALUM 12000UF 20% 16V RADIAL | 72% | View |
| ELXZ6R3ELL123MM30S | United Chemi-Con | CAP ALUM 12000UF 20% 6.3V RADIAL | 71% | View |
Submit your RFQ for LGY1C123MELA30 and get a quote within 24 hours.
