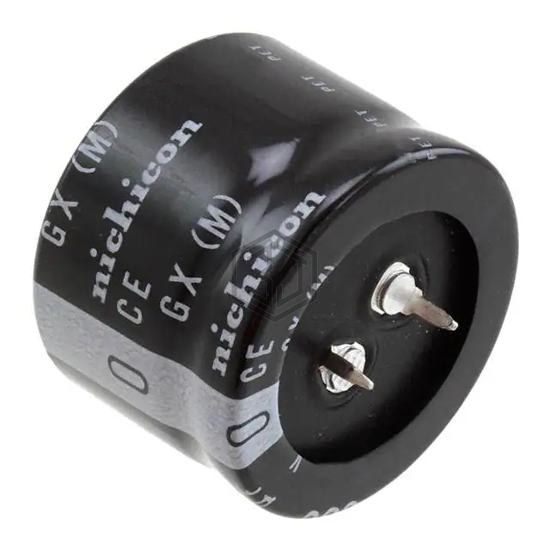

CAP ALUM 180UF 20% 450V SNAP
LGX2W181MELC25 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 180UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 8,497
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.573 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 500VXG180MEFC35X30 | Rubycon | CAP ALUM 180UF 20% 500V SNAP | 91% | View |
| 420NXG180MEFC25X35 | Rubycon | CAP ALUM 180UF 20% 420V SNAP | 91% | View |
| SLP181M350E1P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 180UF 20% 350V SNAP | 83% | View |
| 350MXC180MEFCSN25X30 | Rubycon | CAP ALUM 180UF 20% 350V SNAP | 83% | View |
| LAK2G181MELB30 | Nichicon | CAP ALUM 180UF 20% 400V SNAP | 76% | View |
| UCY2C181MHD6 | Nichicon | CAP ALUM 180UF 20% 160V RADIAL | 71% | View |
