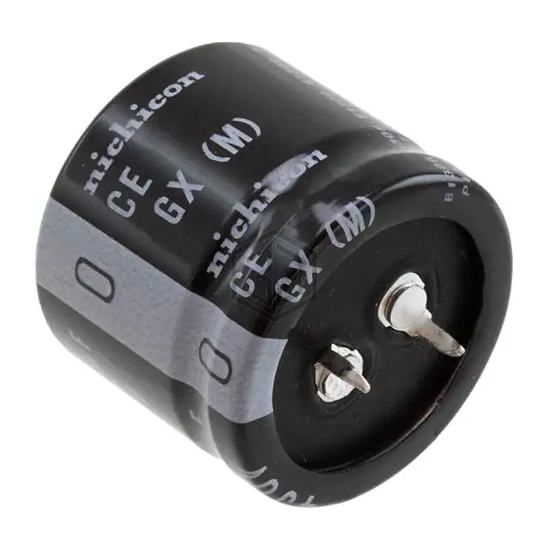

CAP ALUM 150UF 20% 450V SNAP
LGX2W151MELB25 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 3,391
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 930 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.3299 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43504C5157M002 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 450V SNAP | 100% | View |
| UPH2G151MHD | Nichicon | CAP ALUM 150UF 20% 400V RADIAL | 95% | View |
| MAL225917151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 450V SNAP | 88% | View |
| LAR2W151MELA30 | Nichicon | CAP ALUM 150UF 20% 450V SNAP | 87% | View |
| EKMT421VSN151MP35S | United Chemi-Con | CAP ALUM 150UF 20% 420V SNAP | 85% | View |
| 420BXW150MEFR18X40 | Rubycon | CAP ALUM 150UF 20% 420V RADIAL | 84% | View |
