CAP ALUM 120UF 20% 450V SNAP

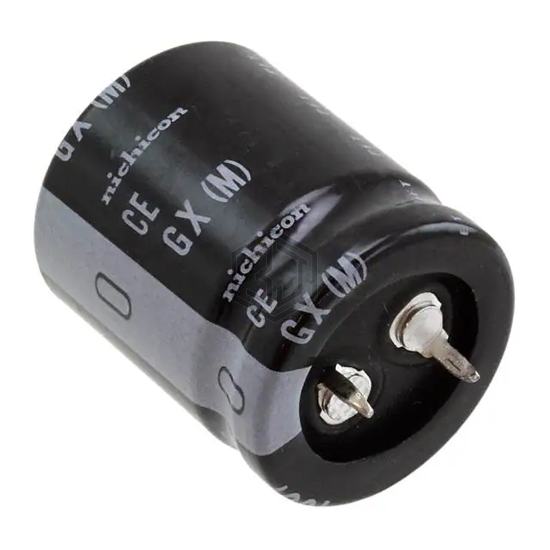

LGX2W121MELA30 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 120UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 1,302
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 880 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.2584 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43544E5127M067 | EPCOS - TDK Electronics | CAP ALUM 450V POLAR | 99% | View |
| EKHS4H1VSN121MQ30S | Chemi-Con | CAP ALUM 120UF 20% 475V SNAP TH | 98% | View |
| 420CXW120MEFR18X31.5 | Rubycon | CAP ALUM 120UF 20% 420V RADIAL | 94% | View |
| 450VXR120MEFCSN30X30 | Rubycon | CAP ALUM 120UF 20% 450V SNAP | 90% | View |
| 400SXG120MEFCSN22X30 | Rubycon | CAP ALUM 120UF 20% 400V SNAP | 88% | View |
| EEU-FC2A121S | Panasonic Electronic Components | CAP ALUM 120UF 20% 100V RADIAL | 55% | View |
