CAP ALUM 82UF 20% 500V SNAP

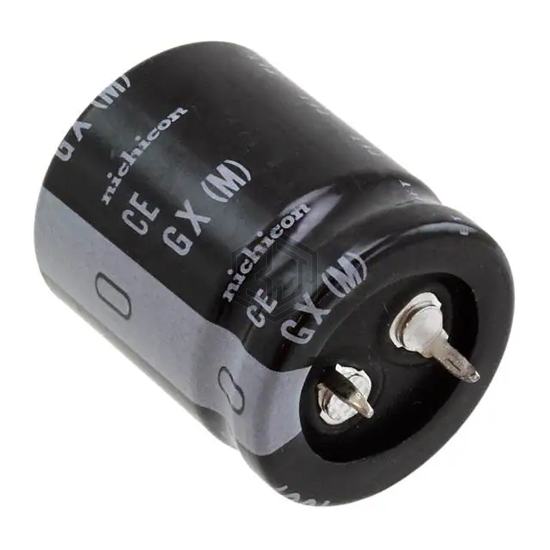

LGX2H820MELA30 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 82UF 20% 500V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 500 V, package / case Radial, Can - Snap-In.
In Stock: 225
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 740 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.0582 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 420MXG82MEFCSN20X25 | Rubycon | CAP ALUM 82UF 20% 420V SNAP | 94% | View |
| 450MXG82MEFCSN20X30 | Rubycon | CAP ALUM 82UF 20% 450V SNAP | 94% | View |
| PW2G820MNN1625EF3J | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 88% | View |
| UPT2W820MHD | Nichicon | CAP ALUM 82UF 20% 450V RADIAL | 85% | View |
| EKXJ401EBC820MM25S | United Chemi-Con | CAP ALUM 82UF 20% 400V RADIAL | 80% | View |
| EKXJ351ELL820ML25S | United Chemi-Con | CAP ALUM 82UF 20% 350V RADIAL | 76% | View |
Submit your RFQ for LGX2H820MELA30 and get a quote within 24 hours.
