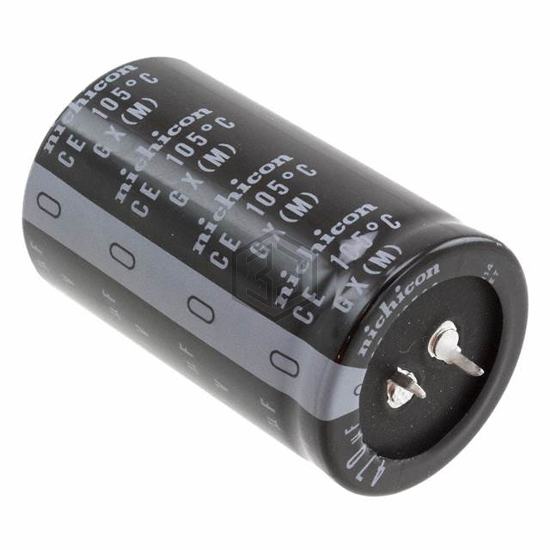

CAP ALUM 470UF 20% 500V SNAP
LGX2H471MELC58 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 500V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 500 V, package / case Radial, Can - Snap-In.
In Stock: 6,094
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.03 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.9029 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.362" (60.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 475MXH470MEFCSN35X50 | Rubycon | CAP ALUM 470UF 20% 475V SNAP | 98% | View |
| B43509A5477M002 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 450V SNAP | 95% | View |
| B43504B9477M82 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 400V SNAP | 89% | View |
| EKMW421VSN471MA30S | United Chemi-Con | CAP ALUM 470UF 20% 420V SNAP | 85% | View |
| EKMS251VSN471MP40S | United Chemi-Con | CAP ALUM 470UF 20% 250V SNAP | 69% | View |
| B43252G2477M | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 250V SNAP | 67% | View |
Submit your RFQ for LGX2H471MELC58 and get a quote within 24 hours.
