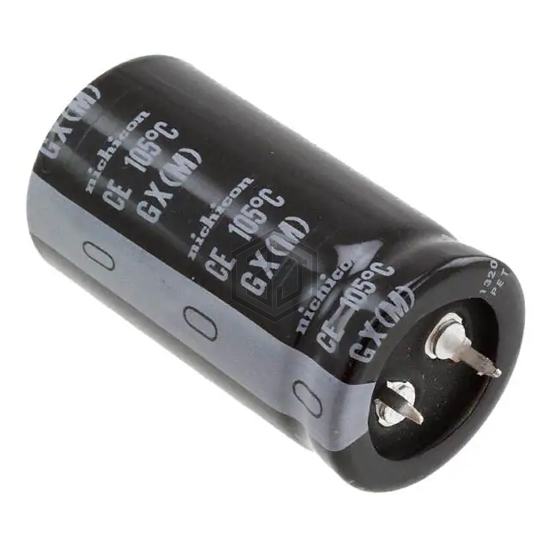

CAP ALUM 330UF 20% 400V SNAP
LGX2G331MELA45 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 6,916
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.859 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL205976331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 400V SNAP | 99% | View |
| 420MXC330MEFCSN30X40 | Rubycon | CAP ALUM 330UF 20% 420V SNAP | 97% | View |
| B43642C9337M000 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 400V SNAP | 95% | View |
| EKMS421VSN331MR35S | United Chemi-Con | CAP ALUM 330UF 20% 420V SNAP | 92% | View |
| 400MXG330MEFCSN30X35 | Rubycon | CAP ALUM 330UF 20% 400V SNAP | 89% | View |
| 450VXK330MEFCSN35X30 | Rubycon | CAP ALUM 330UF 20% 450V SNAP | 88% | View |
Submit your RFQ for LGX2G331MELA45 and get a quote within 24 hours.
