CAP ALUM 220UF 20% 400V SNAP

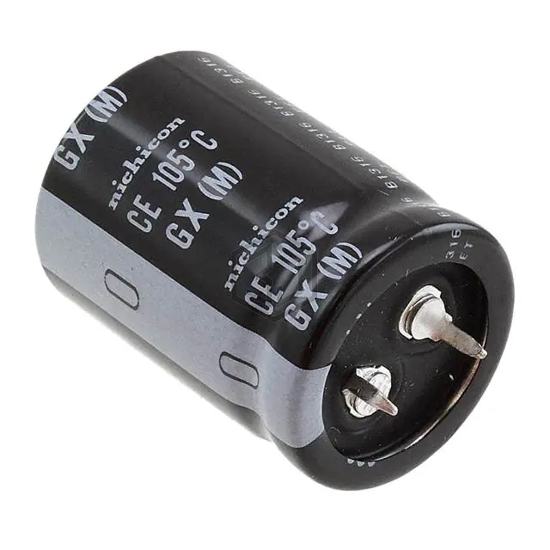

LGX2G221MELA35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 3,276
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.12 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.6016 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400SXG220MEFC35X25 | Rubycon | CAP ALUM 220UF 20% 400V SNAP | 99% | View |
| LDQ2G221MERAGA | Nichicon | CAP ALUM 220UF 20% 400V RADIAL | 99% | View |
| MAL209424221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 420V SNAP | 96% | View |
| 420VXG220MEFCSN35X25 | Rubycon | CAP ALUM 220UF 20% 420V SNAP | 94% | View |
| B43545B9227M007 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 400V SNAP | 92% | View |
| B43544A7227M000 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 550V SNAP | 77% | View |
Submit your RFQ for LGX2G221MELA35 and get a quote within 24 hours.
