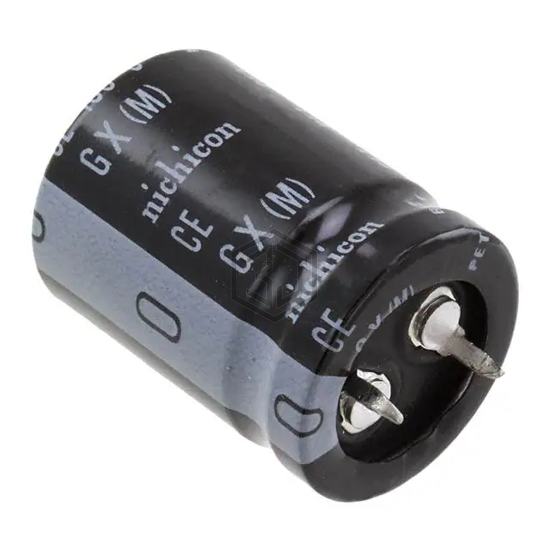

CAP ALUM 120UF 20% 400V SNAP
LGX2G121MELZ30 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 120UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 7,160
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 750 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.0725 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215976121E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 120UF 20% 400V SNAP | 100% | View |
| LGNW6121MELZ30 | Nichicon | CAP ALUM 120UF 20% 420V SNAP | 95% | View |
| B43255A5127M | EPCOS - TDK Electronics | CAP ALUM 120UF 20% 450V SNAP | 94% | View |
| 381LR121M450H032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 120UF 20% 450V SNAP | 93% | View |
| 450VXH120MEFCSN25X25 | Rubycon | CAP ALUM 120UF 20% 450V SNAP | 85% | View |
| MAL215929121E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 120UF 20% 500V SNAP | 84% | View |
