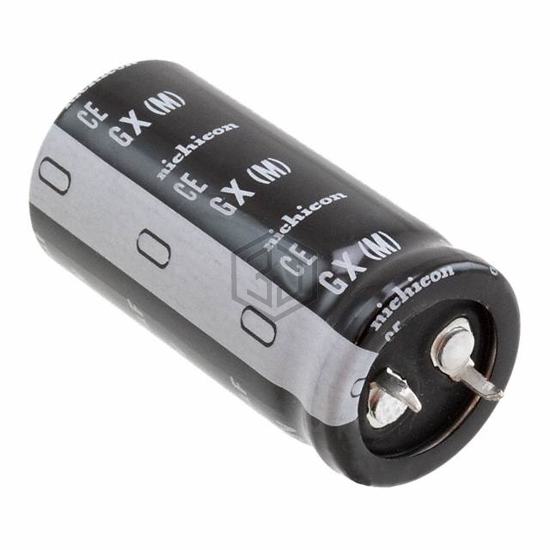

CAP ALUM 560UF 20% 250V SNAP
LGX2E561MELZ45 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 560UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 7,748
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.7 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH251VNN561MR35S | United Chemi-Con | CAP ALUM 560UF 20% 250V SNAP | 100% | View |
| MAL225923561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 250V SNAP | 92% | View |
| EKMS201VSN561MP35S | United Chemi-Con | CAP ALUM 560UF 20% 200V SNAP | 91% | View |
| EKMH351VSN561MA45S | United Chemi-Con | CAP ALUM 560UF 20% 350V SNAP | 88% | View |
| B43508A2567M80 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 84% | View |
| EKXJ161ELL561MM40S | United Chemi-Con | CAP ALUM 560UF 20% 160V RADIAL | 74% | View |
Submit your RFQ for LGX2E561MELZ45 and get a quote within 24 hours.
