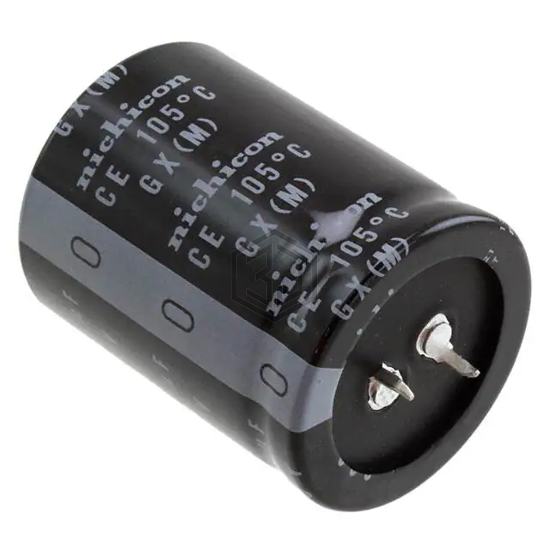

CAP ALUM 1500UF 20% 250V SNAP
LGX2E152MELC45 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 4,899
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.05 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.575 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43508E2158M80 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 250V SNAP | 99% | View |
| B43508E2158M60 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 250V SNAP | 99% | View |
| 381LQ152M180A022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1500UF 20% 180V SNAP | 79% | View |
| 350HFG1500MBN35X95 | Rubycon | CAP ALUM 1500UF 20% 350V RADIAL | 66% | View |
| MAL215869152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 100V SNAP | 66% | View |
| EEU-FP1E152 | Panasonic Electronic Components | CAP ALUM 1500UF 20% 25V RADIAL | 62% | View |
Submit your RFQ for LGX2E152MELC45 and get a quote within 24 hours.
