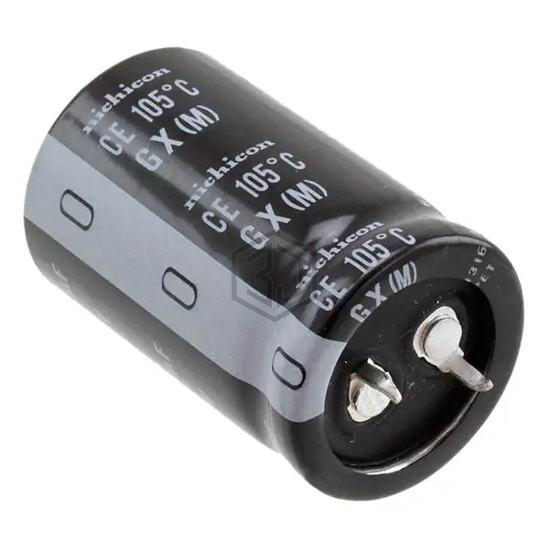

CAP ALUM 820UF 20% 200V SNAP
LGX2D821MELA40 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 820UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 8,889
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.09 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.135 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGU2D821MELA | Nichicon | CAP ALUM 820UF 20% 200V SNAP | 99% | View |
| 250VXH820MEFCSN30X35 | Rubycon | CAP ALUM 820UF 20% 250V SNAP | 91% | View |
| 250VXR820MEFC35X35 | Rubycon | CAP ALUM 820UF 20% 250V SNAP | 91% | View |
| SLP821M160C7P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 820UF 20% 160V SNAP | 86% | View |
| 827LMH400M2EH | Cornell Dubilier / Illinois Capacitor | CAP ALUM 820UF 20% 400V SNAP | 75% | View |
| EEU-FC1J821SB | Panasonic Electronic Components | CAP ALUM 820UF 20% 63V RADIAL | 73% | View |
Submit your RFQ for LGX2D821MELA40 and get a quote within 24 hours.
