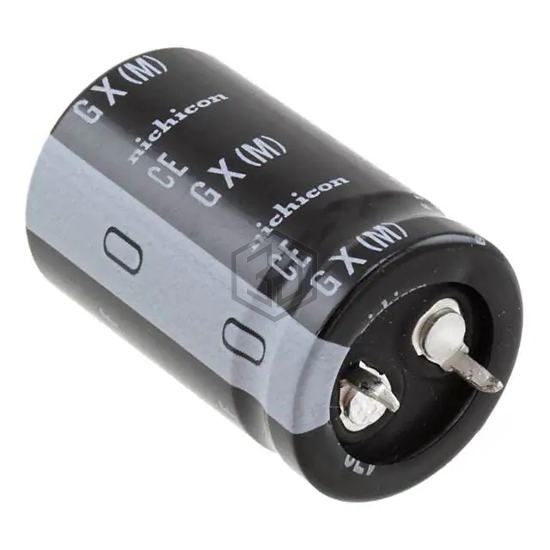

CAP ALUM 470UF 20% 200V SNAP
LGX2D471MELZ35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 9,319
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.55 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.325 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXS251VSN471MP40S | United Chemi-Con | CAP ALUM 470UF 20% 250V SNAP | 91% | View |
| 381LX471M180H032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 470UF 20% 180V SNAP | 91% | View |
| LGU2F471MELA | Nichicon | CAP ALUM 470UF 20% 315V SNAP | 83% | View |
| 50ZLJ470M12.5X16 | Rubycon | CAP ALUM 470UF 20% 50V RADIAL | 72% | View |
| 400VXG470MEFCSN30X50 | Rubycon | CAP ALUM 470UF 20% 400V SNAP | 65% | View |
| MAL214638471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 63V RADIAL | 57% | View |
Submit your RFQ for LGX2D471MELZ35 and get a quote within 24 hours.
