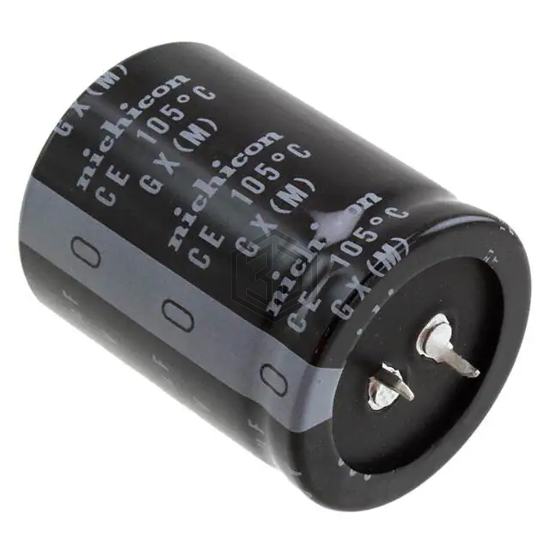

CAP ALUM 1800UF 20% 200V SNAP
LGX2D182MELC45 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1800UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 8,517
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.28 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.92 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGN2D182MELB50 | Nichicon | CAP ALUM 1800UF 20% 200V SNAP | 97% | View |
| B43642B2188M007 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 200V SNAP | 95% | View |
| ETXH251VSN182MB60S | United Chemi-Con | CAP ALUM 1800UF 20% 250V SNAP | 92% | View |
| E91D251VND182MB50U | Chemi-Con | CAP ALUM 1.8MF 20% 250V SNAP TH | 75% | View |
| EKZN500ELL182MLP1S | United Chemi-Con | CAP ALUM 1800UF 20% 50V RADIAL | 69% | View |
| EKZN800ELL182MM40S | United Chemi-Con | CAP ALUM 1800UF 20% 80V RADIAL | 65% | View |
Submit your RFQ for LGX2D182MELC45 and get a quote within 24 hours.
