CAP ALUM 1200UF 20% 200V SNAP

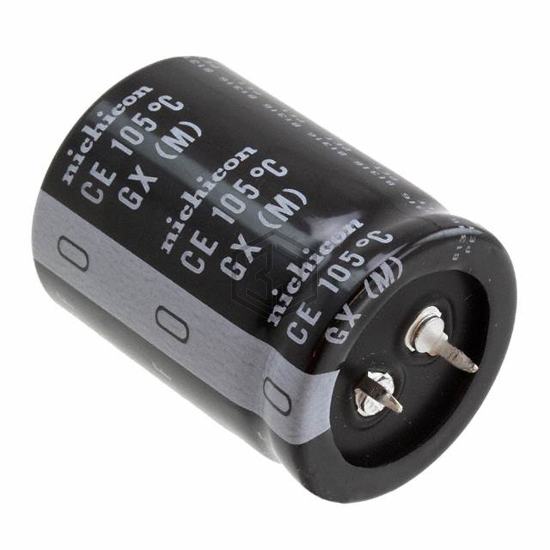

LGX2D122MELB40 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1200UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 6,646
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.53 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.795 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
LGX2D122MELB40 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43508A2128M82 | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 200V SNAP | 99% | View |
| EKMH201VSN122MA40S | United Chemi-Con | CAP ALUM 1200UF 20% 200V SNAP | 98% | View |
| B43508B2128M87 | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 200V SNAP | 97% | View |
| B43640F2128M007 | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 250V SNAP | 88% | View |
| EEU-FM1V122S | Panasonic Electronic Components | CAP ALUM 1200UF 20% 35V RADIAL | 75% | View |
| EEU-FC1J122 | Panasonic Electronic Components | CAP ALUM 1200UF 20% 63V RADIAL | 71% | View |
Submit your RFQ for LGX2D122MELB40 and get a quote within 24 hours.
