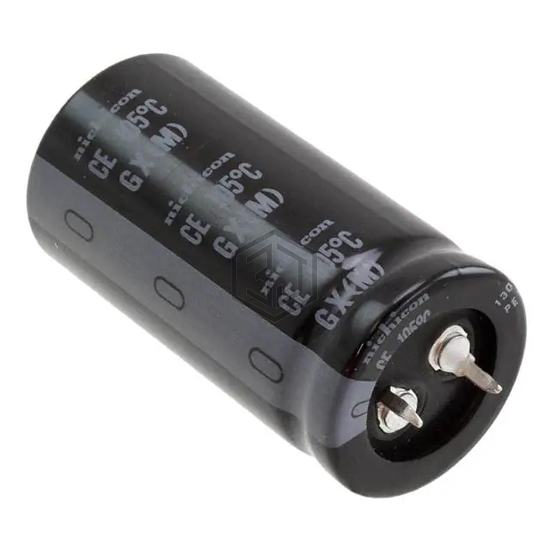

CAP ALUM 1200UF 20% 200V SNAP
LGX2D122MELA50 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1200UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 1,523
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.6 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 220MXG1200MEFCSN25X55 | Rubycon | CAP ALUM 1200UF 20% 220V SNAP | 87% | View |
| B43504B2128M60 | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 250V SNAP | 83% | View |
| EGPD630ELL122ML30H | United Chemi-Con | CAP ALUM 1200UF 20% 63V RADIAL | 76% | View |
| 860040578015 | Würth Elektronik | CAP ALUM 1200UF 20% 35V RADIAL | 72% | View |
| 35ZLH1200MEFCG412.5X25 | Rubycon | CAP ALUM 1200UF 20% 35V RADIAL | 66% | View |
| MAL215031122E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 50V RADIAL | 60% | View |
Submit your RFQ for LGX2D122MELA50 and get a quote within 24 hours.
