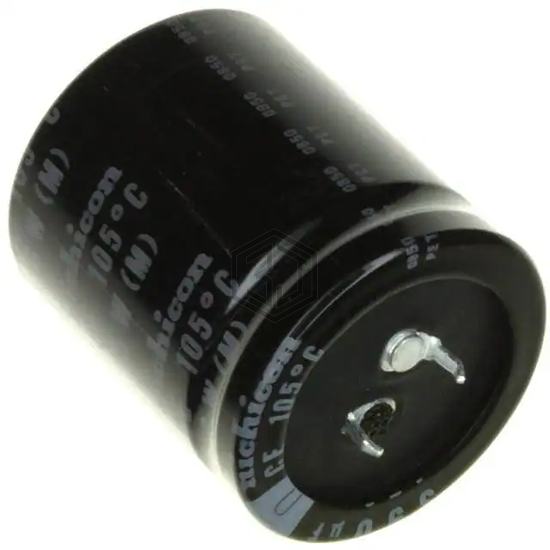

CAP ALUM 560UF 20% 450V SNAP
LGW2W561MELC50 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 560UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 4,961
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.85 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.0755 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E91F421VND561MB50U | United Chemi-Con | CAP ALUM 560UF 20% 420V SNAP | 97% | View |
| B43515A0567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 420V SNAP | 94% | View |
| 475MXH560MEFCSN35X55 | Rubycon | CAP ALUM 560UF 20% 475V SNAP | 87% | View |
| EKMH451VSN561MA63U | United Chemi-Con | CAP ALUM 560UF 20% 450V SNAP | 86% | View |
| EKXJ201ELL561MM50S | United Chemi-Con | CAP ALUM 560UF 20% 200V RADIAL | 68% | View |
| MAL209443561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 250V SNAP | 62% | View |
Submit your RFQ for LGW2W561MELC50 and get a quote within 24 hours.
